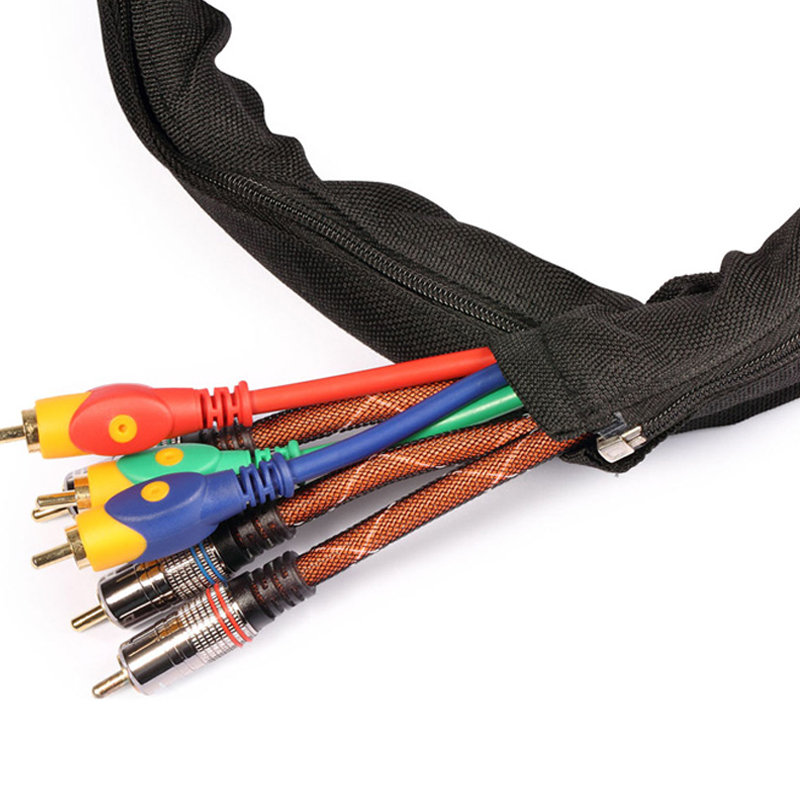

HW-H zipper multifilament wrap firstly has the same function as zipper braided wrap, easy to be installed and uninstalled and excellent anti-abrasion performance, but furthermore offers better dust resistance due to tight weaving construction. This kind of sleeving can provide many variety of sizes to accommodate any harnessing and cable management application owing to its flexibility.
Application:

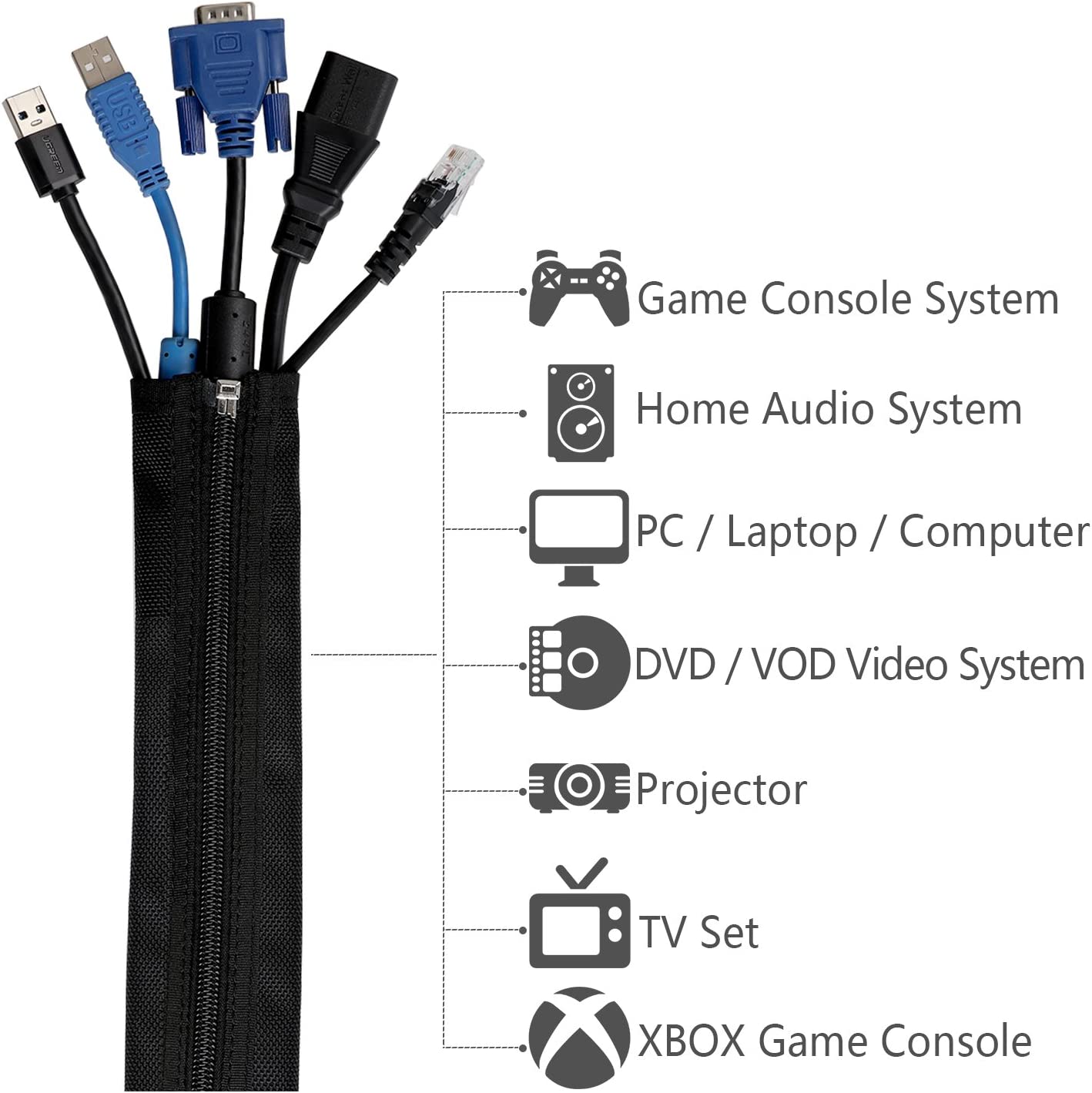

Most commonly used on wires, wire bundles and harnesses, computer power cords, tubes and hoses to provide a tough, durable protection in several industrial fields.
Technical data:
Material: Polyester multifilament
Working temperature: -50℃~+150℃
Melting point: 240±10℃
Flammability: VW-1
Color: black
Approval: RoHS

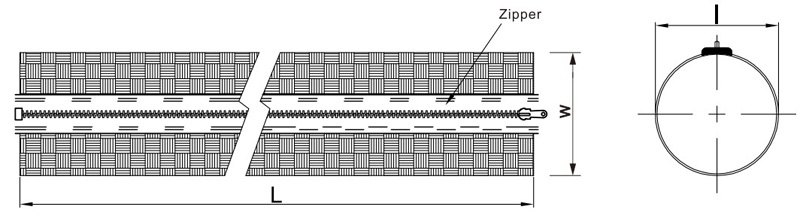

| Part No. | I.D.（I） | Spread width | Max. bundle dia. | Packing (L) |
| H-25 | 25 | 88 | 27 | On request |
| H-30 | 30 | 104 | 32 | |
| H-35 | 35 | 120 | 37 | |
| H-40 | 40 | 135 | 42 | |
| H-45 | 45 | 151 | 47 | |
| H-50 | 50 | 170 | 52 | |
| H-60 | 60 | 198 | 62 |
