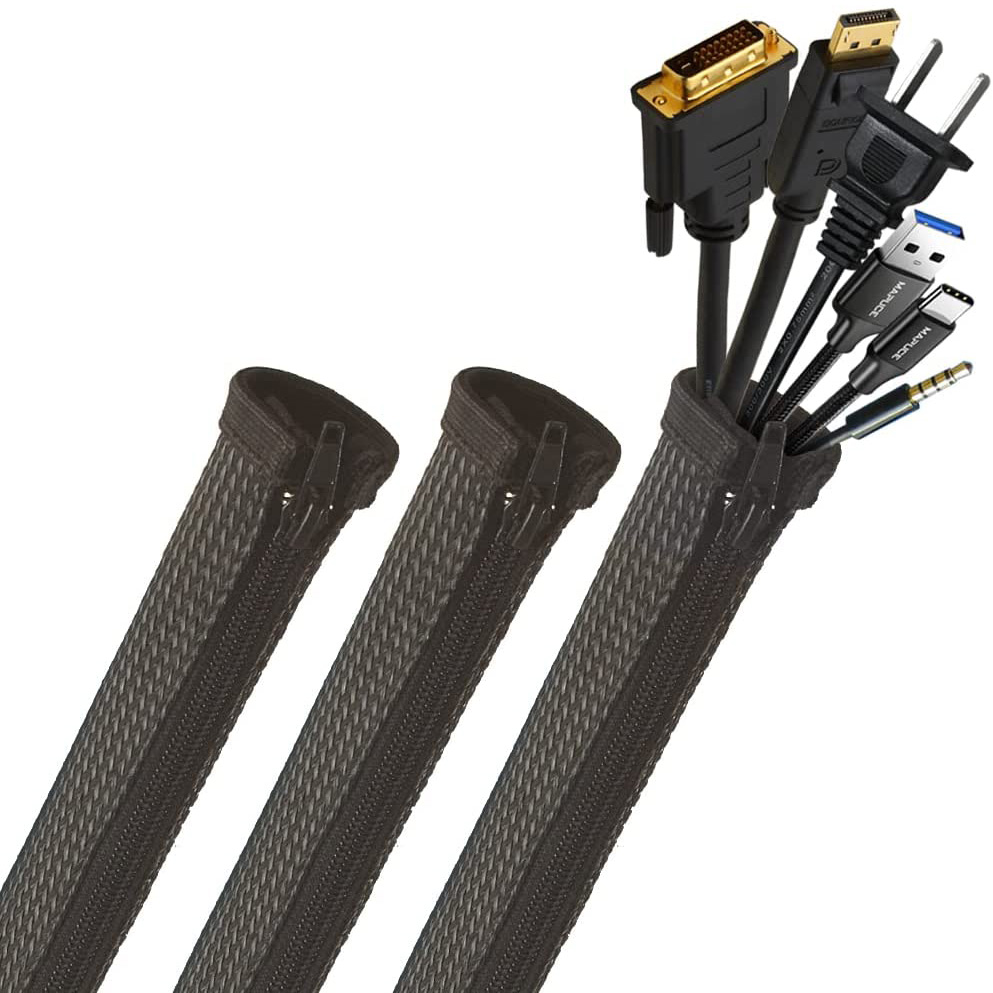

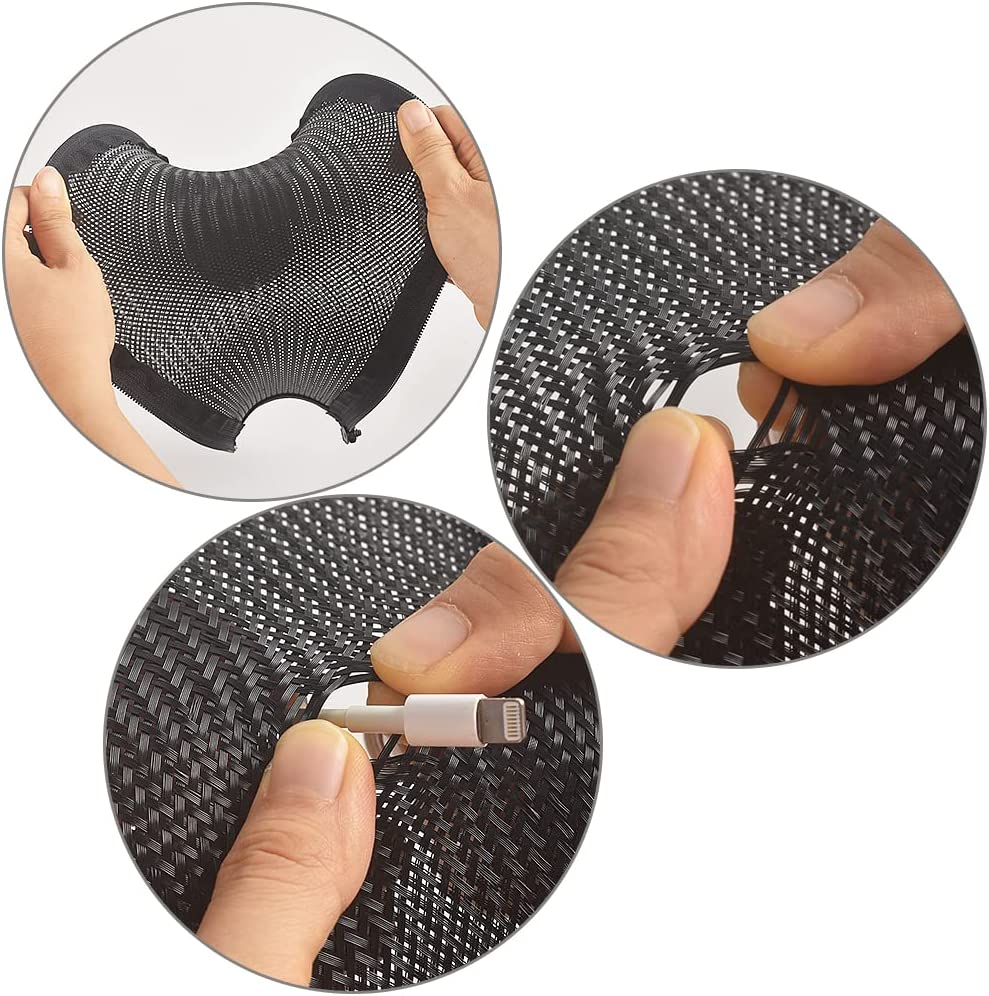

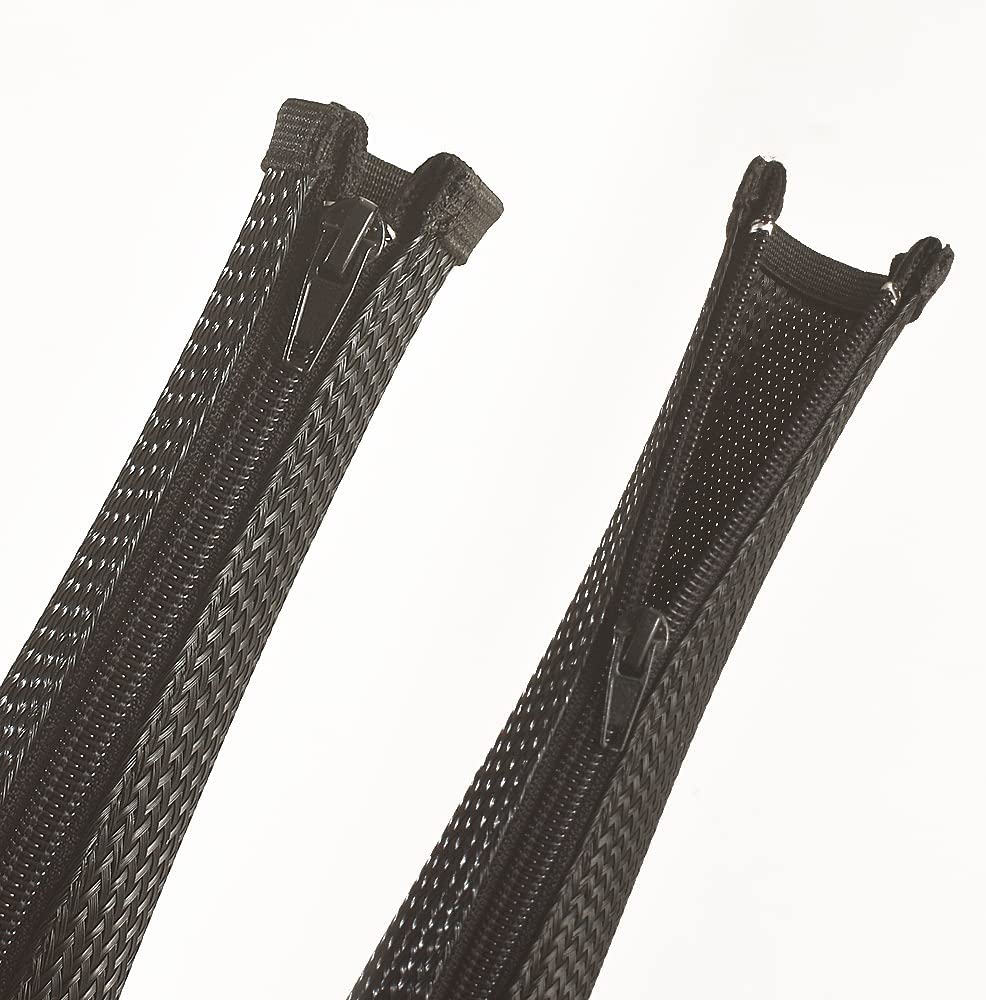

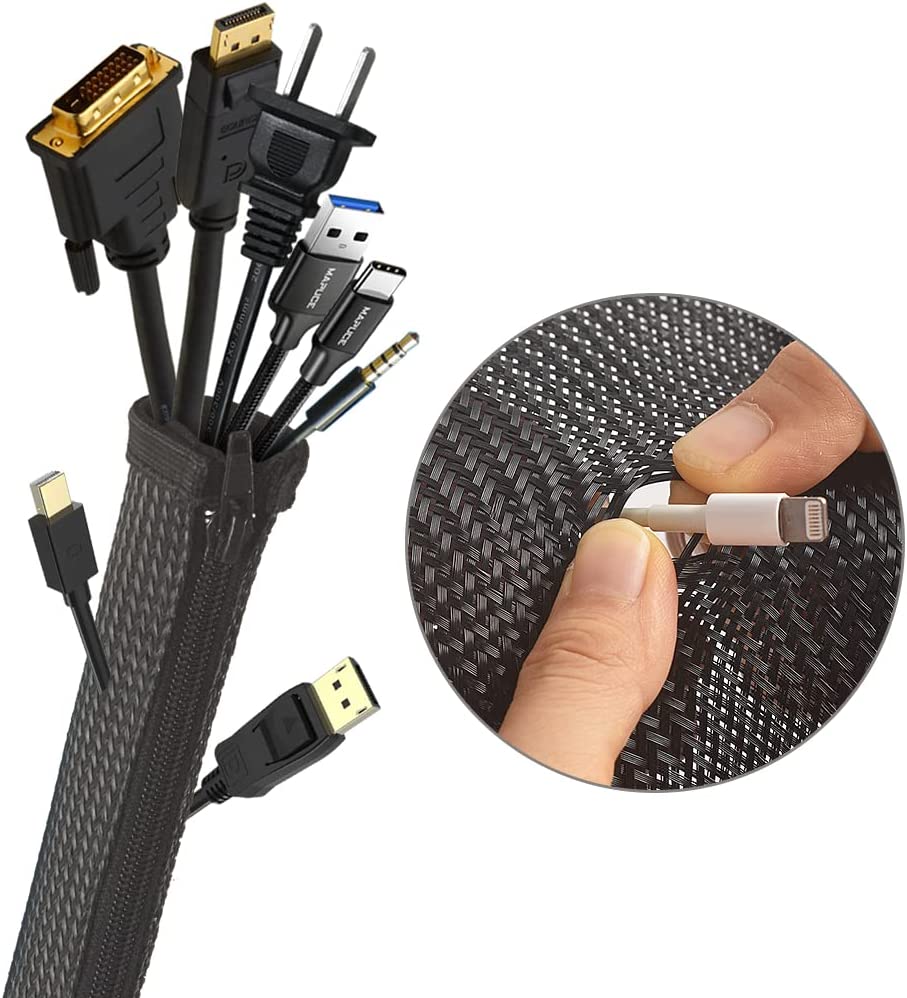

HW-J could be installing on the cable harness very easily just like to close your coat with the zipper. It can offer an additional protection against flame and abrasion. It allows to install or uninstall wires and cables very quickly and easily due to its special structure.
Application:

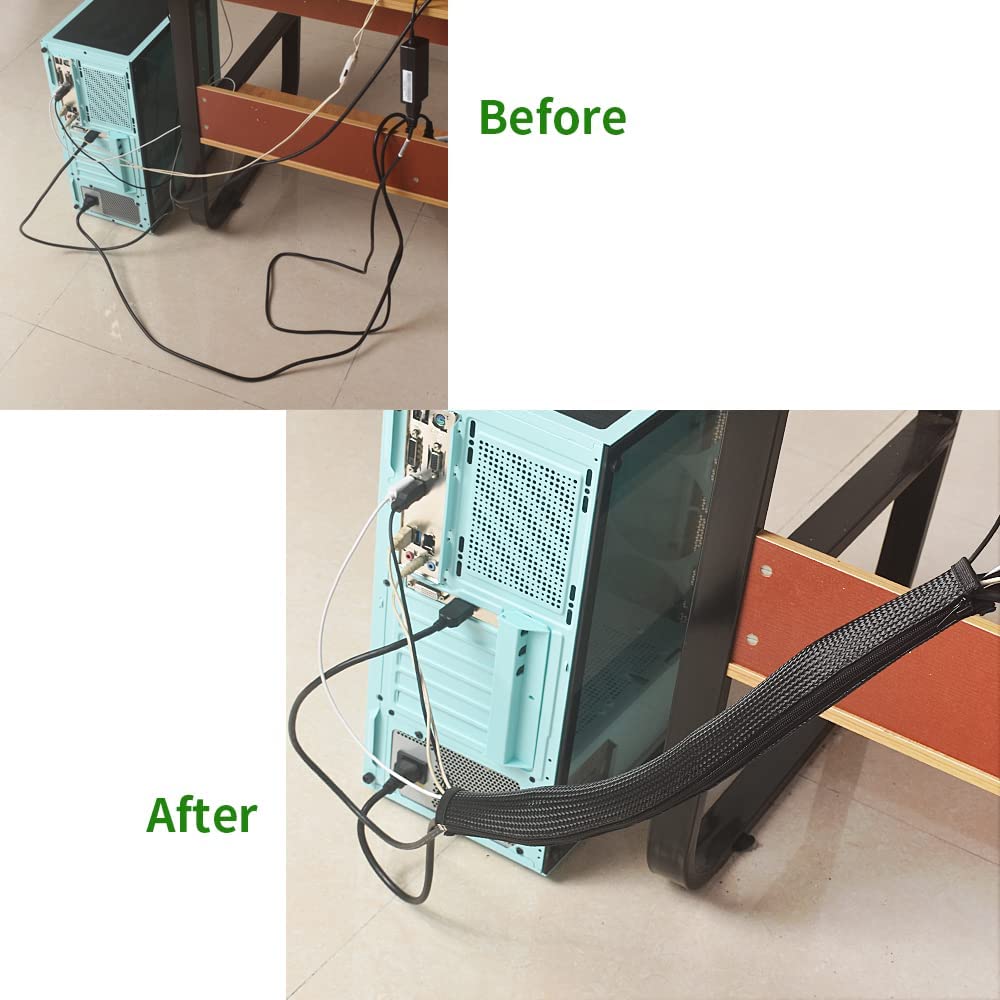

Most commonly used on wires, wire bundles and harnesses, cable assemblies, flat ribboncable, tubing and hoses to provide a tough, durable protection in home, office, railway.
Technical data:
Material: Polyester
Working temperature: -50℃~+150℃
Melting point: 240±10℃
Flammability: VW-1
Color: Black
Approval: RoHS

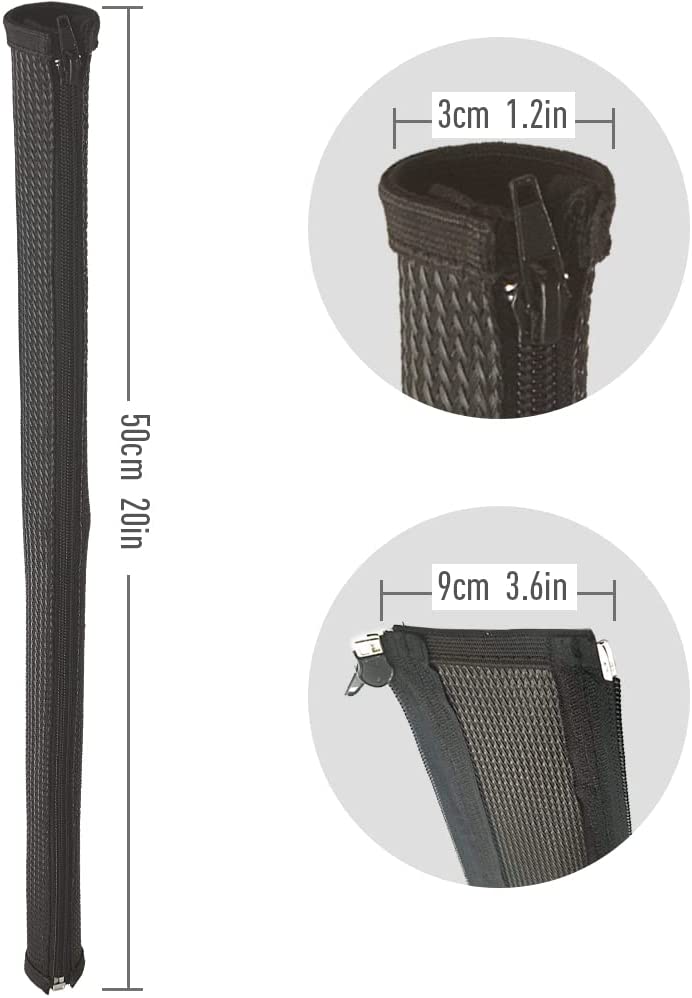

| Part No. | Nominal size (W) | Max. bundle dia.(I) | Packing (L) |
| J-12 | 12mm | 8mm | On request |
| J-20 | 20mm | 15mm | |
| J-30 | 30mm | 20mm | |
| J-50 | 50mm | 35mm | |
| J-64 | 64mm | 45mm |
