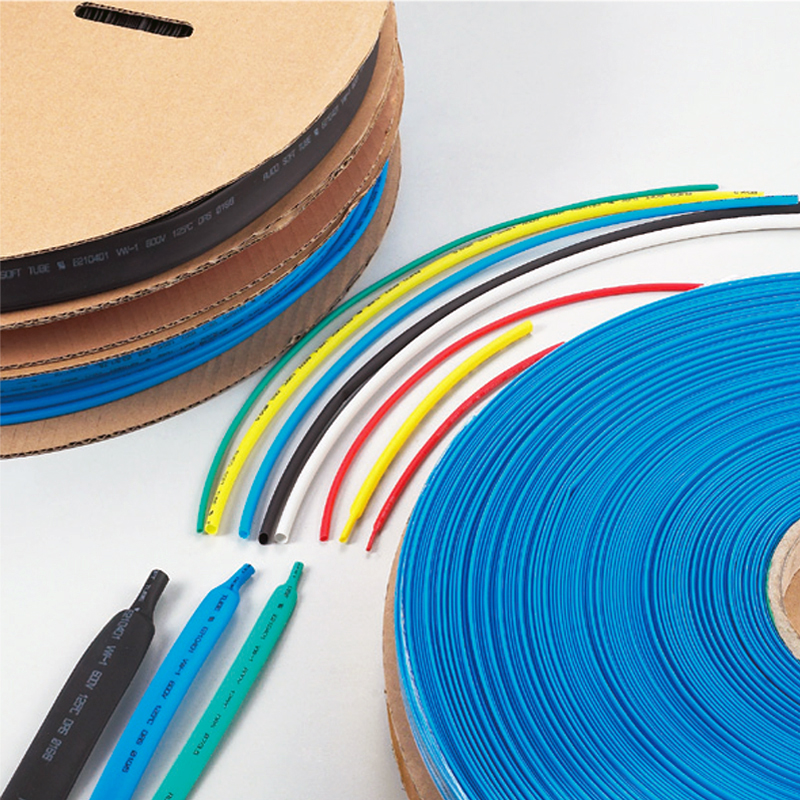

HW-SH is a newly developed environment-friendly flame retardant heat-shrinkable tube, using modified polymers and cross-linked by electronic accelerator. It offers an economic and efficient solution for the insulation and protection of cable splices and terminals.
Application: It widely used in the fields of electricity, communication, automotive for connection insulation and rust-proof of metallic product.
Technical data:
Material: Polyethylene
Working temperature: -55℃~+125℃
Shrink temperature: Start at 70℃, complete shrink at 110℃
Longitudinal shrinkage: ≤5%
Flammability: VW-1
Shrinkage ratio: 2:1
Tool: Heat gun,Oven
Approval: UL, CSA, RoHS, Halogen free
| Part No. | As supplied | After recovery | Packing (L) | ||
| I.D. | Wall thickness(t) | Max .I.D. (I) | Wall thickness(T) | ||
| SH-0.8 | 1.1±0.2 | 0.15±0.03 | ≤0.50 | 0.30±0.10 | 200m/spool |
| SH-1.0 | 1.5±0.2 | 0.18±0.03 | ≤0.65 | 0.36±0.10 | 200m/spool |
| SH-1.5 | 2.0±0.3 | 0.18±0.03 | ≤0.85 | 0.36±0.10 | 200m/spool |
| SH-2.0 | 2.5±0.3 | 0.20±0.05 | ≤1.0 | 0.40±0.10 | 200m/spool |
| SH-2.5 | 3.0±0.3 | 0.20±0.04 | ≤1.25 | 0.40±0.10 | 200m/spool |
| SH-3.0 | 3.5±0.4 | 0.20±0.04 | ≤1.5 | 0.40±0.10 | 200m/spool |
| SH-3.5 | 4.0±04 | 0.22±0.04 | ≤1.75 | 0.44±0.10 | 200m/spool |
| SH-4.0 | 4.5±0.4 | 0.25±0.04 | ≤2.0 | 0.50±0.10 | 200m/spool |
| SH-4.5 | 5.0±0.4 | 0.25±0.04 | ≤2.25 | 0.50±0.10 | 100m/spool |
| SH-5.0 | 5.5±0.4 | 0.25±0.04 | ≤2.5 | 0.50±0.10 | 100m/spool |
| SH-5.5 | 6.0±0.4 | 0.25±0.04 | ≤2.75 | 0.50±0.10 | 100m/spool |
| SH-6.0 | 6.5±0.4 | 0.28±0.04 | ≤3.0 | 0.55±0.10 | 100m/spool |
| SH-6.5 | 7.0±0.3 | 0.28±0.04 | ≤3.25 | 0.55±0.10 | 100m/spool |
| SH-7.0 | 7.5±0.3 | 0.28±0.04 | ≤3.5 | 0.55±0.10 | 100m/spool |
| SH-8.0 | 8.5±0.5 | 0.28±0.04 | ≤4.0 | 0.60±0.10 | 100m/spool |
| SH-9.0 | 9.5±0.5 | 0.30±0.05 | ≤4.5 | 0.60±0.10 | 100m/spool |
| SH-10 | 10.5±0.5 | 0.30±0.05 | ≤5.0 | 0.60±0.10 | 100m/spool |
| SH-11 | 11.5±0.5 | 0.30±0.05 | ≤5.5 | 0.60±0.10 | 100m/spool |
| SH-12 | 12.5±0.5 | 0.30±0.05 | ≤6 | 0.60±0.10 | 100m/spool |
| SH-13 | 13.5±0.5 | 0.35±0.06 | ≤6.5 | 0.70±0.10 | 100m/spool |
| SH-14 | 14.5±0.5 | 0.35±0.06 | ≤7 | 0.70±0.10 | 100m/spool |
| SH-15 | 15.5±0.5 | 0.40±0.08 | ≤7.5 | 0.75±0.10 | 100m/spool |
| SH-16 | 16.5±0.5 | 0.40±0.08 | ≤8 | 0.75±0.10 | 100m/spool |
| SH-17 | 17.5±0.5 | 0.40±0.08 | ≤8.5 | 0.75±0.10 | 100m/spool |
| SH-18 | 19±0.7 | 0.40±0.08 | ≤9 | 0.75±0.10 | 100m/spool |
| SH-20 | 21±0.7 | 0.40±0.08 | ≤10 | 0.75±0.10 | 100m/spool |
| SH-22 | 23±0.7 | 0.40±0.08 | ≤11 | 0.80±0.15 | 100m/spool |
| SH-25 | 26±0.7 | 0.50±0.10 | ≤12.5 | 0.90±0.15 | 50m/spool |
